제품 세부 정보
원래 장소: 사천성, 중국
브랜드 이름: SHUNUOTECH
인증: ISO9001
지불 및 배송 조건
최소 주문 수량: 협상 가능
가격: negotiable
포장 세부 사항: 제품은 항해에 적합한 상자나 수출 표준 상자에 포장됩니다.
배달 시간: 15일 또는 협상 가능
지불 조건: L/C, T/T 또는 협상 가능
공급 능력: 1000 PC / 달
제품 이름: |
고경도 CBN 연삭 휠 |
연마재: |
입방정계 질화 붕소 |
바인더: |
금속분말, 수지분말, 세라믹 또는 전기도금 |
적용: |
고망간강, 고크롬, 니켈, 몰리브덴 합금강, 냉각주철 등 소재 가공 |
장점: |
높은 효율성, 내구성 등 |
형태: |
플랫형, 컵형, 원통형, 플랫형, 필수 |
제품 이름: |
고경도 CBN 연삭 휠 |
연마재: |
입방정계 질화 붕소 |
바인더: |
금속분말, 수지분말, 세라믹 또는 전기도금 |
적용: |
고망간강, 고크롬, 니켈, 몰리브덴 합금강, 냉각주철 등 소재 가공 |
장점: |
높은 효율성, 내구성 등 |
형태: |
플랫형, 컵형, 원통형, 플랫형, 필수 |

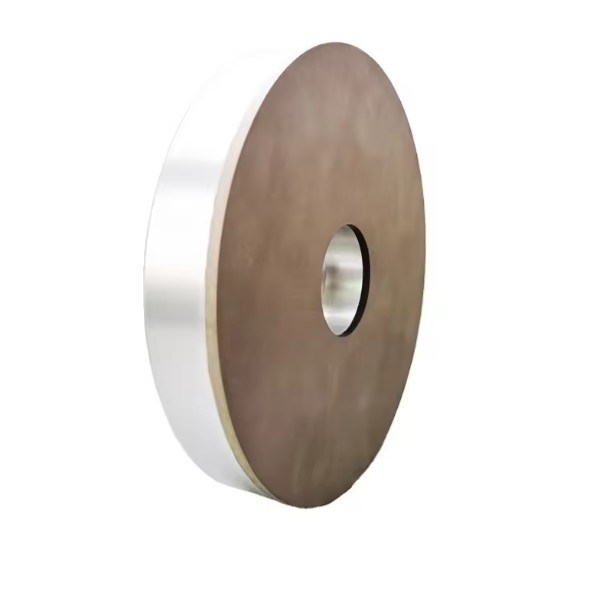

High Hardness CBN Grinding Wheel Used for Grinding and Polishing
The CBN grinding wheel is a tool used for grinding, fine grinding and polishing. It uses CBN (cubic boron nitride) abrasive as raw material, and uses metal powder, resin powder, ceramic and electroplated metal as binders to make products of various shapes. CBN grinding wheel has more advantages than diamond grinding wheels in processing ferrous metals.
Structure:
The structure of CBN (cubic boron nitride) grinding wheel generally consists of three parts: working layer, matrix layer and transition layer.
The working layer, also known as the CBN layer, is composed of abrasives, binders and fillers, and is the working part of the grinding wheel.
The transition layer, also known as the non-CBN layer, is composed of binders, metal powder and fillers, and is the part that firmly connects the CBN layer to the matrix.
The matrix layer is made of aluminum or steel, and plays the role of supporting the working layer and clamping the grinding wheel.
Classification:
CBN Grinding wheels can be divided into the following four types according to different processing techniques and different components of binders used. Their properties and uses (referring to mechanical processing purposes) are also different.
| Electroplated CBN grinding wheel | The molding process of the grinding wheel is simple and the production cost is low. The molding is simple but there is only one layer of plating, which cannot be corrected. During the processing, it is difficult to know when the grinding layer is damaged. It is suitable for small-batch mechanical processing and geometrically complex molding grinding and as a dressing roller. |
| Sintered CBN grinding wheel | It has high hardness and density, and is processed into high-precision dressing rollers at a high cost. It is mainly used for dressing rollers of grinding wheels and large-scale processing of superhard materials. |
| Resin CBN grinding wheel | The production process of the grinding wheel is simple and the production cost is low. The molding is simple but it is not easy to correct and shape. It is used for small-batch processing of multiple shapes. Such as tool grinding and tool processing, and glass processing. |
| Vitrified bond CBN grinding wheel | The vitrified bond CBN grinding wheel has the advantages of strong grinding force, high-speed processing without burning the workpiece, and can be corrected and durable. It is ideal grinding tool with high-speed, high-efficiency and high-precision. |
Applications:
CBN grinding wheels are suitable for processing high manganese steel, high chromium, nickel, molybdenum alloy steel, chilled cast iron and other materials, and are particularly suitable for stable high-precision grinding in automated, semi-automated and multi-machine management production.
About us:
We are a technology-based enterprise integrating research, custom design, manufacturing and sales of superhard material wear-resistant tools. The company's professional technical team has been committed to the superhard material tool industry for many years, especially in the design and manufacture of diamond and cubic boron nitride tools.
FAQ:
Q: Are you a trading company or manufactuer?
A: We are a manufacturer with rich experience of international trade.
Q: Where is your factory? How can I visit there?
A: Our factory is located in Deyang, Sichuan, China. You can fly to Chengdu international airport, then we will pick you up.
Q: What payment methods do you support?
A: We support T/T, L/C, and other payment methods are accepted.
Q: What shipping methods do you support?
A: Sea transportation, air transportation, railway transportation, and road transportation, etc.
Q: What is your packaging?
A: The products are packed in cartons sea-worthy or export standard.
Q: What is your delivery time?
A: The delivery time is usually 30-60days or negotiable.
Q: Do you support OEM or ODM?
A: Yes. Just send us your drawing or sample, we will do all the remaining work.
