제품 세부 정보
원래 장소: 사천성, 중국
브랜드 이름: SHUNUOTECH
인증: ISO9001
지불 및 배송 조건
최소 주문 수량: 협상 가능
가격: negotiable
포장 세부 사항: 제품은 항해에 적합한 상자나 수출 표준 상자에 포장됩니다.
배달 시간: 15일 또는 협상 가능
지불 조건: L/C, T/T 또는 협상 가능
공급 능력: 1000 PC / 달
제품 이름: |
강력한 내마모성 CBN 연삭 휠 |
연마재: |
입방정계 질화 붕소 |
바인더: |
금속분말, 수지분말, 세라믹 또는 전기도금 |
적용: |
고망간강, 고크롬, 니켈, 몰리브덴 합금강, 냉각주철 등 소재 가공 |
장점: |
고효율, 강한 내마모성, 강한 내화학성, 환경 보호 및 에너지 절약 등. |
형태: |
평면형, 컵형, 원통형, 평면형 또는 맞춤형 |
제품 이름: |
강력한 내마모성 CBN 연삭 휠 |
연마재: |
입방정계 질화 붕소 |
바인더: |
금속분말, 수지분말, 세라믹 또는 전기도금 |
적용: |
고망간강, 고크롬, 니켈, 몰리브덴 합금강, 냉각주철 등 소재 가공 |
장점: |
고효율, 강한 내마모성, 강한 내화학성, 환경 보호 및 에너지 절약 등. |
형태: |
평면형, 컵형, 원통형, 평면형 또는 맞춤형 |

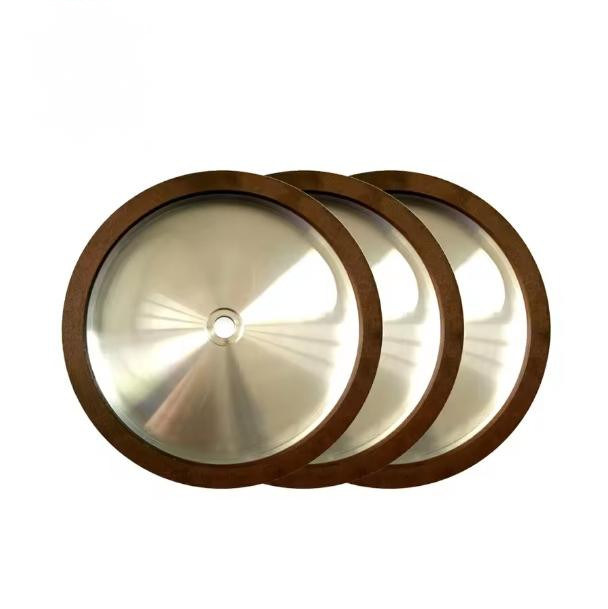

Strong Wear Resistance CBN Grinding Wheel for Grinding and Polishing
The CBN (cubic boron nitride) grinding wheel generally consists of three parts: working layer, matrix layer and transition layer.
The working layer, also known as the CBN layer, is composed of abrasives, binders and fillers, and is the working part of the grinding wheel.
The transition layer, also known as the non-CBN layer, is composed of binders, metal powder and fillers, and is the part that firmly connects the CBN layer to the matrix.
The matrix layer is made of aluminum or steel, and plays the role of supporting the working layer and clamping the grinding wheel.
Main features:
| Extremely high hardness | The hardness of CBN grinding wheel is second only to diamond, with extremely high wear resistance, and can grind hard materials efficiently. |
| Good thermal stability | It can maintain excellent grinding performance at high temperature, suitable for high-speed grinding and heavy-load operation. |
| Strong chemical inertness | It is not easy to react chemically with iron group elements, suitable for grinding high-speed steel, high-alloy hardened steel and other materials. |
| Long life | The grinding wheel has a long life, which can reduce the replacement frequency and reduce production costs. |
| Environmental protection and energy saving | Less dust and heat are generated during use, which is conducive to environmental protection and energy saving. |
| High-efficiency grinding | It can improve production efficiency while maintaining good processing surface quality. |
Applications:
The CBN (Cubic boron nitride) grinding wheels are suitable for processing products made of the following materials: ① high manganese steel; ② high chromium, nickel, molybdenum alloy steel; ③ chilled cast iron (HS80-90); ④ various types of hardened steel (HRC55-65); ⑤ various types of cast iron (HB200-400), ⑥ glass, gemstones and other high hardness and soft tough materials. They have been used in automobiles (gears, flywheels, shafts, bearings, etc.), rolls, slurry pumps (impellers, volutes, guard plates, sleeves, etc.), molds, and cylinder liners. They have solved the cutting of high hardness and difficult-to-process materials in various industries, improved work efficiency, greatly saved processing time and electricity, and achieved huge economic benefits.
About us:
We are a technology-based enterprise integrating research, custom design, manufacturing and sales of superhard material wear-resistant tools. The company's professional technical team has been committed to the superhard material tool industry for many years, especially in the design and manufacture of diamond and cubic boron nitride tools.
FAQ:
Q: Are you a trading company or manufactuer?
A: We are a manufacturer with rich experience of international trade.
Q: Where is your factory? How can I visit there?
A: Our factory is located in Deyang, Sichuan, China. You can fly to Chengdu international airport, then we will pick you up.
Q: What payment methods do you support?
A: We support T/T, L/C, and other payment methods are accepted.
Q: What shipping methods do you support?
A: Sea transportation, air transportation, railway transportation, and road transportation, etc.
Q: What is your packaging?
A: The products are packed in cartons sea-worthy or export standard.
Q: What is your delivery time?
A: The delivery time is usually 30-60days or negotiable.
Q: Do you support OEM or ODM?
A: Yes. Just send us your drawing or sample, we will do all the remaining work.
